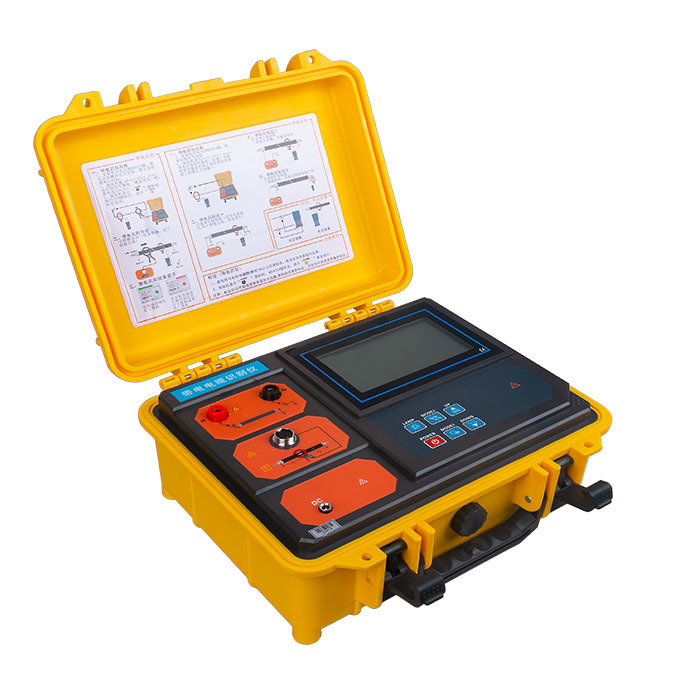

Xhsb505ds Manufacturing Factory Cable Fault Identifier for Live

Name: Xhsb505ds Manufacturing Factory Cable Fault Identifier for Live
Brand: Xi'an Xu&Hui Electromechanical Technology Co., Ltd.
SKU: Se aplicará el procedimiento siguiente:
Price: 1,050.00 USD
Availability: InStock

Detalles del producto:

Lugar de origen:	PORCELANA
Nombre de la marca:	XZH Test
Certificación:	CE/ISO
Número de modelo:	Se aplicará el procedimiento siguiente:

Información detallada

Lugar de origen:

PORCELANA

Nombre de la marca:

XZH Test

Certificación:

CE/ISO

Número de modelo:

Se aplicará el procedimiento siguiente:

Resaltar:

High Light

Resaltar:

cable fault identifier for live wires

manufacturing factory cable locator

live wire fault detector

Trading Information

Cantidad de orden mínima:

1unidad

Detalles de empaquetado:

Caja de madera

Tiempo de entrega:

5-8 días de trabajo

Condiciones de pago:

T/T

Capacidad de la fuente:

2000unit/año

Descripción de producto

XHSB505DS

Model NO.

XHSB505DS

Certification

CE, ISO

Transport Package

Wooden

Specification

420mm× 250mm× 340mm

Trademark

XZH TEST

Origin

China Xi'an

HS Code

9031809090

Production Capacity

100 Pieces /Year

This product has the capability for live and de - energy cable identification, as well as AC current and voltage testing. Its components are a transmitter, a transmitting current clamp, a receiver, and a receiving flexible current clamp. The test cable voltage range is from AC 0.00V to 600V (50Hz/60Hz). The measurable AC current range is from AC 0.00A to 5000A (50Hz/60Hz). The measurable current frequency is between 45Hz and 70Hz.

Main Function

Handheld type receiver has 3.5inch color LCD Screen
Transmitter adopts integrated special toolbox design, Good wear resistance, heat resistance and insulation performance.
Large-diameter clamp size Φ120mm
Multiple frequency to identify energy cable625Hz,1562Hz,2500Hz,10kHz
11.1V large-capacity rechargeable lithium battery, fully charged and continuously working for about 8 hours
De-energy cable identifying distance up to 10km, energy cable indentifying distance up to 5km
International standard IEC61010-1 CAT 600V,IEC61010-031,IEC61326. Pollution degree 2

Test range	De-energy cable identifying: The coil can detect pulse signals with a loop resistance of 0Ω~10kΩ; when the detection loop resistance is 10kΩ, the transmitter battery must be guaranteed to be above 11V (generally, the cable length can reach 0-10 kilometers, mainly by grounding resistance and wire Cable resistance)
Test range	Energy cable identifying: The coil can detect pulse signals with a loop resistance of 0Ω~200Ω; when the detection loop resistance is 200Ω, the transmitter battery must be guaranteed to be above 11V (generally it can reach a cable length of 0-5 kilometers, mainly by grounding resistance and wire Cable resistance)
Range	AC Voltage: 0.00V~600V(50Hz/60Hz)
	AC Current: 0.00A~5000A(50Hz/60Hz)
	Current frq: 45Hz~70Hz
Accuracy	AC Voltage :±2%±3dgt
	AC Current :±2%±3dgt
	Current frq :±2%±3dgt
