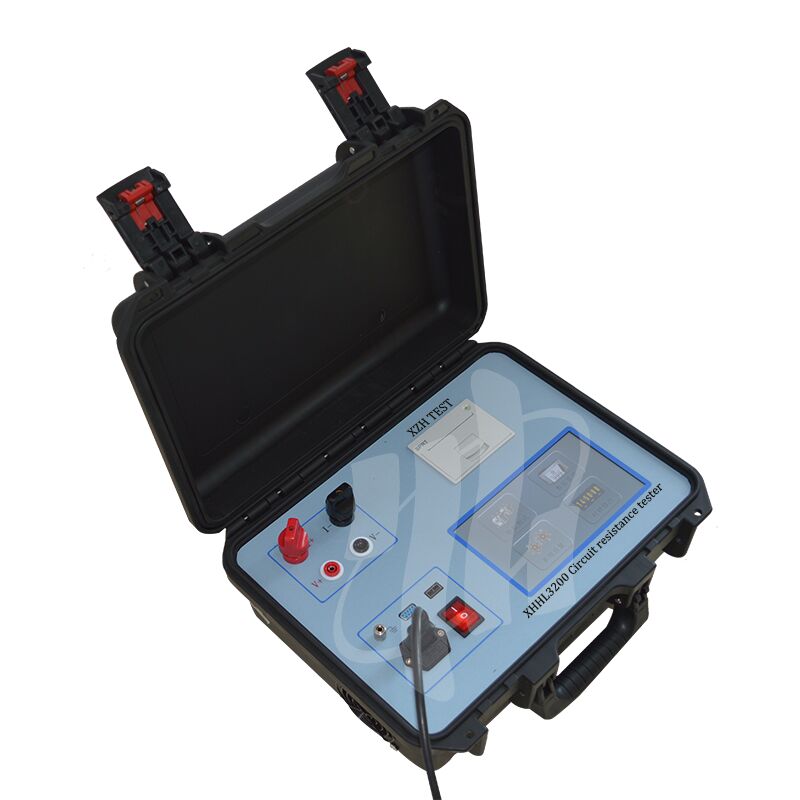

Smart Circuit Resistance Tester with 0.1 μΩ Resolution

Name: Smart Circuit Resistance Tester with 0.1 μΩ Resolution
Brand: Xi'an Xu&Hui Electromechanical Technology Co., Ltd.
Price: 7,970.00 USD
Availability: InStock

Detalles del producto:

Lugar de origen:	Xi'an Shaanxi China
Nombre de la marca:	XZH TEST
Certificación:	ISO CE

Información detallada

Lugar de origen:

Xi'an Shaanxi China

Nombre de la marca:

XZH TEST

Certificación:

ISO CE

Precisión de medición:

±(0,5%+3 dígitos)

Temperatura ambiente:

-10 ℃ ~ 50 ℃ ≤85% HR

Resaltar:

High Light

Resaltar:

Smart Circuit Resistance Tester

0.1 μΩ Micro-Ohmmeter

Portable Contact Resistance Tester

Trading Information

Cantidad de orden mínima:

1 juego

Detalles de empaquetado:

embalaje de madera

Tiempo de entrega:

5-8 días laborables

Condiciones de pago:

T/T

Capacidad de la fuente:

3000 unidad/año

Descripción de producto

Product Overview

Designed to meet the latest preventive test standards for power equipment, this device excels at contact resistance measurement for all types of switchgear. Key technical parameters: minimum test current of 100 amperes, mandatory continuous operation for over 1 minute. Versatile application scope includes busbars, welds, wires and cables, making it an essential tool for power system maintenance.

Performance Features
★ Adopts constant current output; the instrument has a high output current and is lightweight;
★ Protective circuit for strong reliability;
★ Features a one-minute test function to meet specified testing requirements;

Technical Parameters

Output Current	100/200A
Operating Mode	Timed operation or continuous operation
Measurement Range	100A: 0～50mΩ 200A: 0～10mΩ
Resolution	0.1μΩ
Measurement Accuracy	±(0.5%+3 digits)
Power Supply	AC 220V±10% 50±1Hz

Smart Circuit Resistance Tester with 0.1 μΩ Resolution 0

Application Scenarios:
♦ Power systems: power generation, transmission, transformation, and distribution;
♦ Factories and mines: large-scale manufacturing plants and various mining companies;
♦ Metallurgy and petrochemicals: smelting, chemical industry, water treatment, etc.;
♦ Transportation: ports/railways/highways/airports and municipal street lighting, etc.;
♦ Enterprises and institutions: logistics departments of large enterprises and institutions;
♦ Construction industry: large construction and property management companies;
♦ Power equipment installation and testing: power installation and commissioning companies of various levels;
