Grounding Lead Continuity Tester - Easy to Operate

Name: Grounding Lead Continuity Tester - Easy to Operate
Brand: Xi'an Xu&Hui Electromechanical Technology Co., Ltd.
SKU: XHDT702
Price: 440.00 USD
Availability: InStock

Detalles del producto:

Lugar de origen:	Xi'an Shaanxi China
Nombre de la marca:	XZH TEST
Certificación:	ISO CE
Número de modelo:	XHDT702

Información detallada

Lugar de origen:

Xi'an Shaanxi China

Nombre de la marca:

XZH TEST

Certificación:

ISO CE

Número de modelo:

XHDT702

Peso:

5 kilos

Resaltar:

High Light

Resaltar:

Easy to Operate Ground Tester

Grounding Lead Continuity Tester

Continuity Testing Ground Tester

Trading Information

Cantidad de orden mínima:

1 juego

Detalles de empaquetado:

embalaje de madera

Tiempo de entrega:

5-8 días laborables

Condiciones de pago:

T/T

Capacidad de la fuente:

3000 unidad/año

Descripción de producto

Product Overview

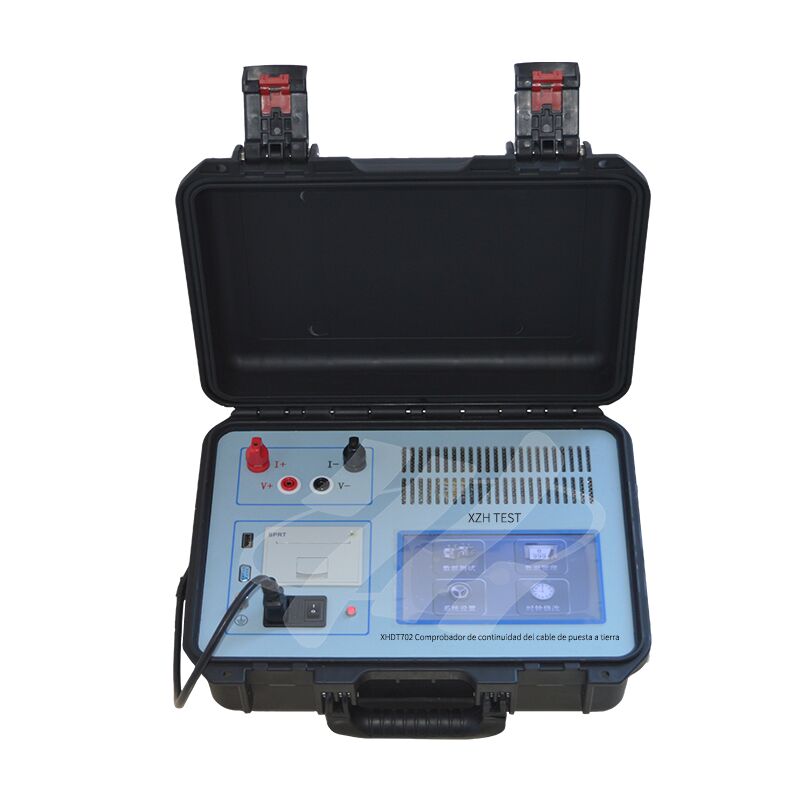

The XHDT702 Grounding Downlead Continuity Tester is specifically designed for measuring the continuity resistance between the grounding downleads of power equipment in substations and the ground grid (or adjacent equipment). It is a professional testing instrument that meets the daily detection needs of power systems.

Performance Features

The entire machine is controlled by a high-speed single-chip microcomputer, featuring high automation and simple operation, which can effectively improve testing efficiency.

The instrument adopts advanced power supply technology, with multiple current gears and a wide measurement range, capable of adapting to different testing scenarios.

It is equipped with intelligent power management technology, which can effectively save power and extend the service life of the instrument.

It is equipped with a 320X240 dot-matrix 65K true-color LCD with ultra-small pixels, ensuring clear display even under strong light conditions.

The instrument has a built-in power-off storage function, which can store up to 1000 groups of test data for easy query at any time.

The instrument is equipped with a built-in lithium battery and a built-in charger, making it convenient to use anytime and anywhere without additional power supply.

Technical Specifications

★ Output Current: 10A, 1A Auto-switching

★ Measurement Range: 10A: 1mΩ～2Ω, 1A: 2Ω～20Ω

★ Resolution: 0.1μΩ

★ Accuracy: ±(0.2% of reading + 2 digits)

★ Power Supply: AC 220V±10% 50Hz±1Hz

★ Ambient Temperature: -10～50℃

★ Ambient Humidity: ≤90%RH

Grounding Lead Continuity Tester - Easy to Operate 0
