Cable Fault Simulation Device with Acoustic-Magnetic Synchronization Digital Display

Name: Cable Fault Simulation Device with Acoustic-Magnetic Synchronization Digital Display
Brand: Xi'an Xu&Hui Electromechanical Technology Co., Ltd.
SKU: XHFZ510-B2
Price: 1,050.00 USD
Availability: InStock

Detalles del producto:

Lugar de origen:	La ciudad de Xi'an Shaanxi
Nombre de la marca:	XZH TEST
Certificación:	ISO
Número de modelo:	XHFZ510-B2

Información detallada

Lugar de origen:

La ciudad de Xi'an Shaanxi

Nombre de la marca:

XZH TEST

Certificación:

ISO

Número de modelo:

XHFZ510-B2

Relación de puente:

1/50, 1/20, 1/10, 1/5, 1/4, 1/2, precisión: ±0,25%

Resistencia máxima a medir:

10kΩ

Tensión máxima a medir:

5kVCC

Resaltar:

High Light

Resaltar:

Simulation Device Cable Fault Locator

Acoustic-Magnetic Synchronization Cable Fault Tester

Digital Display Cable Fault Simulation Device

Trading Information

Cantidad de orden mínima:

1 juego

Detalles de empaquetado:

Envasado de madera

Tiempo de entrega:

5-8 días laborables

Condiciones de pago:

T/T

Capacidad de la fuente:

3000 unidad/año

Descripción de producto

XHFZ510-B2

Product Overview

As urbanization speeds up, growing electricity demand drives the shift from overhead lines to cables. Training cable fault detection staff remains a long-standing issue. Our independently developed electrical test simulation training system—distilled from decades of power cable experience—simulates all cable faults, ensuring effective training.

Application

The Electrical Testing Simulation Training System is primarily used for training power cable testing personnel in various industries. The main industries involved include:
Power Industry: Various power plants, substations, power supply bureaus, etc.
Manufacturing Industry: Power cable manufacturers, cable fault detector manufacturers, etc.
Smelting Industry: Self-owned power plants, power plants, etc.
Education Industry: Laboratories, training bases, etc.
Research Institutes: Laboratories, training bases, etc.
Service Industry: Property management, service companies, logistics departments, etc.

Panel Introduction

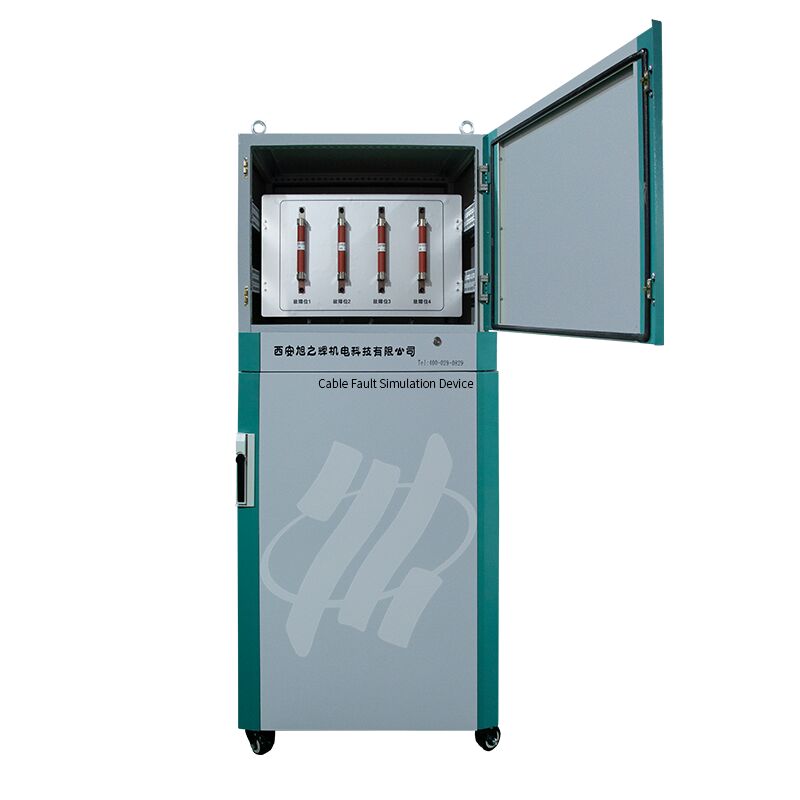

Cable Fault Simulation Device with Acoustic-Magnetic Synchronization Digital Display 0

Test Ends:

1) Main Insulation 1: Cable core end at the T-joint;

2) Test Ground 1: Cable shield end at the T-joint;

3) Main Insulation 2: Cable core end;

4) Test Ground 2: Cable shield end;

5) Grounding Post: Instrument grounding point, for safety protection.

Cable Fault Simulation Device with Acoustic-Magnetic Synchronization Digital Display 1
