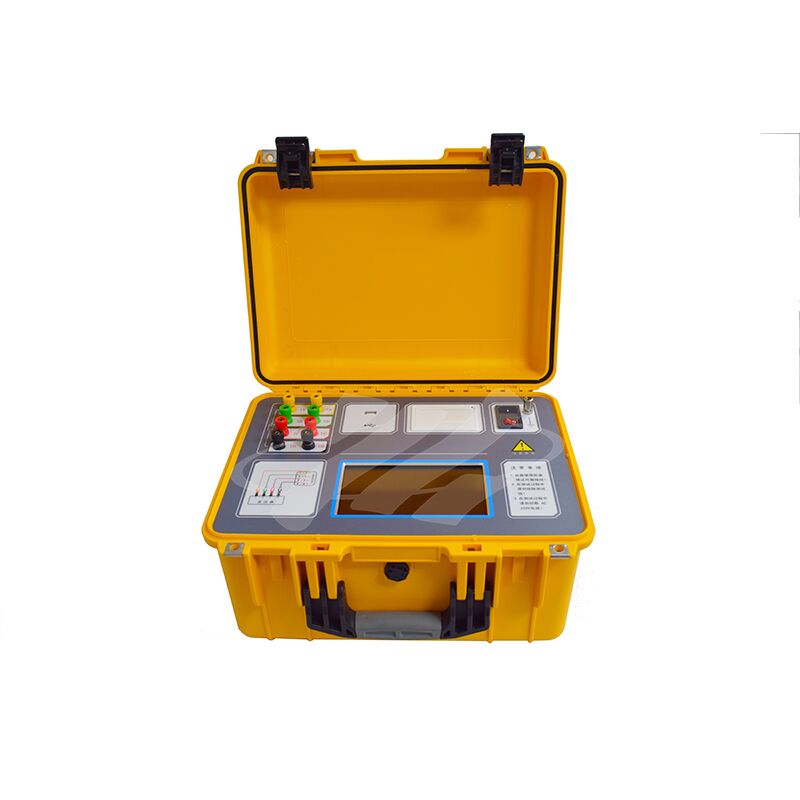

XHZ1320A
Overview
Transformers serve as the heart of power systems, and their sustained, dependable performance directly underpins the overall stability and reliability of the entire grid.
DC resistance testing is an essential procedure for transformers—required during semi-finished/finished product factory inspections, installation, handover, and preventive maintenance by power authorities. This test effectively identifies manufacturing flaws (e.g., substandard coil materials, poor welding, loose joints, missing conductor strands, wire breakage) and post-operation risks. To address the need for efficient DC resistance measurement, our company has engineered the Transformer DC Resistance Tester, drawing on our core technical expertise. This next-generation tester integrates magnetizing testing, three-phase measurement (Yn, Y, △), and demagnetization capabilities, positioning it as the premier solution for measuring DC resistance in large power transformers. Equipped with a high-resolution true-color large LCD screen, touch operation, and a shuttle knob, it is designed for effortless on-site use. The intuitive Chinese menu guidance simplifies operation, and a single wiring setup enables completion of all DC resistance tests—delivering fast speed, superior accuracy, and a broad measurement range.
Main Functions and Features
- The instrument can perform three-phase measurement tests on Yn, Y, and Δ windings and calculate the three-phase imbalance rate.
- The test power supply has a maximum output current of 20A and a test range of 0–25kΩ, meeting the testing requirements of most transformers. It also integrates magnetization and demagnetization functions to meet various on-site testing needs.
- The instrument automatically calculates the resistance change rate over 5, 15, and 30 seconds during the test, assisting testers in judging the stability of test data and preventing misreading.
- The instrument has multiple protection functions, including back EMF protection, line breakage protection, and power failure protection.
- The instrument is equipped with a thermal printer, with a built-in storage capacity of 200 data entries and supports large-scale storage via USB flash drive.
- The industrial-grade 7-inch true-color screen features a clean and simple design, full touch control, and one-button shuttle operation, creating a comfortable and convenient human-machine interaction experience.
Precautions:
When testing the no-load tap changer, switching the no-load tap changer is not permitted during the test or before complete discharge.
During testing or discharge, it is not permitted to disconnect the test leads or turn off the power switch.
During transformer testing, the unmeasured windings of the transformer must be open-circuited.
