Industrial-Level 50A Transformer DC Resistance Tester with 7-inch Display

Name: Industrial-Level 50A Transformer DC Resistance Tester with 7-inch Display
Brand: Xi'an Xu&Hui Electromechanical Technology Co., Ltd.
SKU: Se trata de un sistema de control de velocidad.
Price: 1,050.00 USD
Availability: InStock

Detalles del producto:

Lugar de origen:	Xi'an ShanXi China
Nombre de la marca:	XZH TEST
Certificación:	ISO CE
Número de modelo:	Se trata de un sistema de control de velocidad.

Información detallada

Lugar de origen:

Xi'an ShanXi China

Nombre de la marca:

XZH TEST

Certificación:

ISO CE

Número de modelo:

Se trata de un sistema de control de velocidad.

Resaltar:

High Light

Resaltar:

50A Transformer DC Resistance Tester

7-inch DC Resistance Tester

Industrial-Level Resistance Tester

Trading Information

Cantidad de orden mínima:

1 juego

Detalles de empaquetado:

Envasado de madera

Tiempo de entrega:

5-8 días laborables

Condiciones de pago:

T/T

Capacidad de la fuente:

3000 unidad/año

Descripción de producto

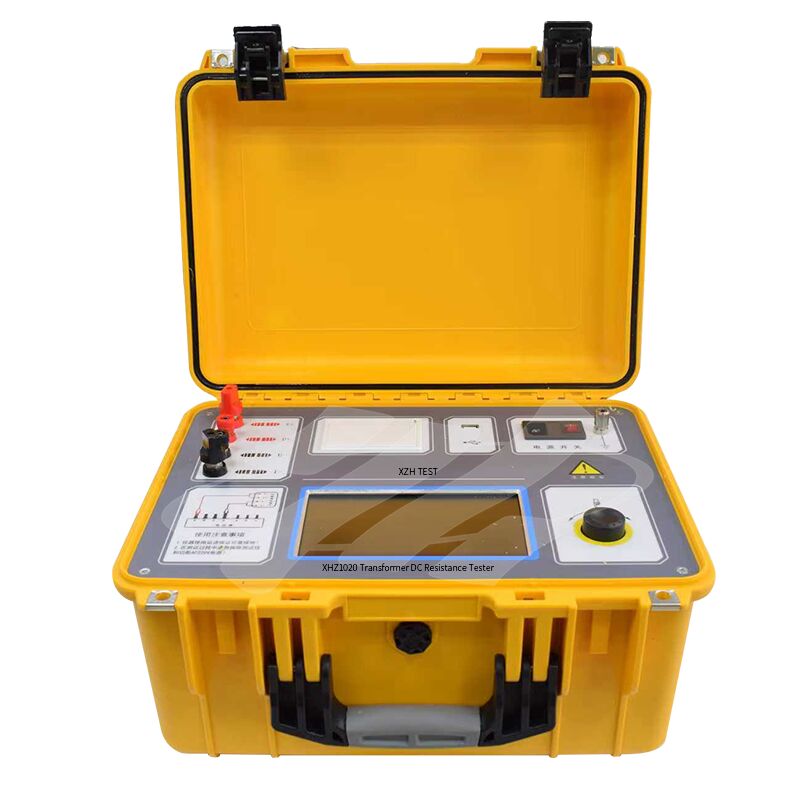

XHZ1020 Transformer DC Resistance Tester

The Transformer DC Resistance Tester is a high-performance industrial instrument designed for accurate measurement of transformer winding resistance. Featuring a 50A test current and 7-inch display, this professional-grade equipment delivers reliable results for maintenance and quality control applications.

As transformer is the core equipment in power system, its long-term reliable operation is of high significance to the stability and reliability of the whole system.

Key Features

50A test current capacity for precise measurements
7-inch industrial-grade display for clear data visualization
Robust construction for demanding industrial environments
Accurate DC resistance measurement for transformer windings
Professional-grade testing solution for maintenance teams

Technical Indicators

Model Type	50A/40A model	20A model
Output Current	50A/40A,20A,10A,5A,1A,0.2A,10mA,<1mA	20A,10A,5A,1A,0.2A,10mA,<1mA
Measurement Range	Gear 50A 75uΩ～0.4Ω Gear 40A 0.1mΩ～0.5Ω Gear 20A 0.5mΩ～ 1 Ω Gear 10A 1.0mΩ～ 2 Ω Gear 5A 10 mΩ～ 4 Ω Gear 1A 0.1Ω～ 20Ω Gear 0.2A 1.0Ω～ 100Ω Gear 10mA 50Ω～ 2kΩ Gear <1mA 500Ω～ 25kΩ
Accuracy	±(reading×0.2%+2)

Industrial-Level 50A Transformer DC Resistance Tester with 7-inch Display 0

20A Model

Industrial-Level 50A Transformer DC Resistance Tester with 7-inch Display 1
