Transformer DC Resistance Testerwith Thermal Printer and DC Resistance Measurement

Name: Transformer DC Resistance Testerwith Thermal Printer and DC Resistance Measurement
Brand: Xi'an Xu&Hui Electromechanical Technology Co., Ltd.
SKU: Se trata de un sistema de control de velocidad.
Price: 1,050.00 USD
Availability: InStock

Detalles del producto:

Lugar de origen:	XI'AN ShanXi
Nombre de la marca:	XZH TEST
Certificación:	ISO
Número de modelo:	Se trata de un sistema de control de velocidad.

Información detallada

Lugar de origen:

XI'AN ShanXi

Nombre de la marca:

XZH TEST

Certificación:

ISO

Número de modelo:

Se trata de un sistema de control de velocidad.

Resaltar:

High Light

Resaltar:

Thermal Printer DC Resistance Tester

Transformers Test Needs Resistance Tester

DC Resistance Measurement Tester

Trading Information

Cantidad de orden mínima:

1 juego

Detalles de empaquetado:

Envasado de madera

Tiempo de entrega:

5-8 días laborables

Condiciones de pago:

T/T

Capacidad de la fuente:

3000 unidad/año

Descripción de producto

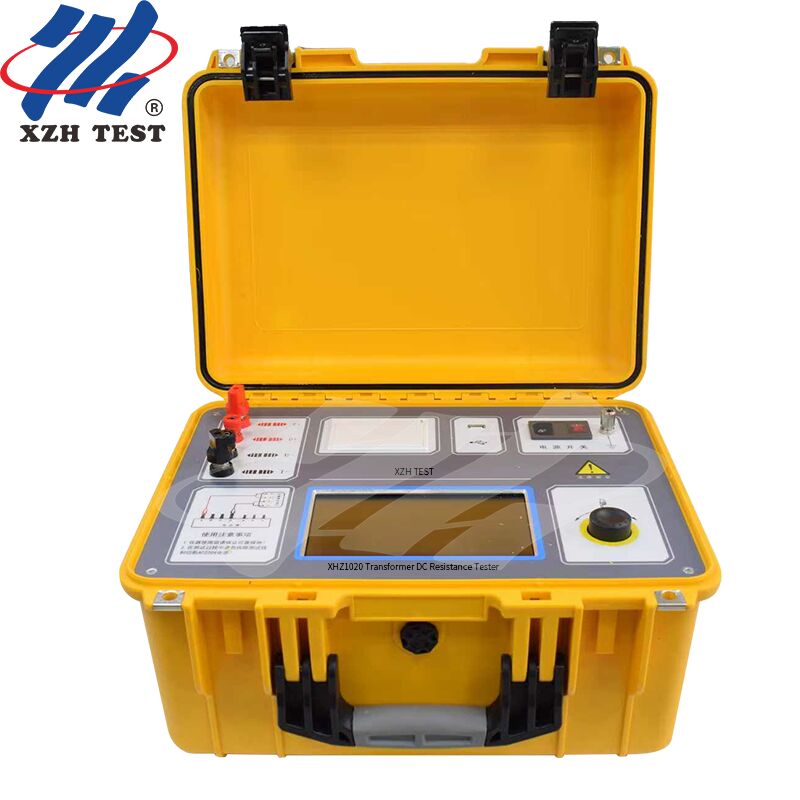

XHZ1020 Transformer DC Resistance Tester

Designed specifically for transformers' test requirements, this DC Resistance Tester comes equipped with a built-in thermal printer for immediate results documentation.

The DC resistance of transformers must be tested for their delivery, installation and handover, regardless they’re semi-finished or finished transformers.

It’s also indispensable in preventive tests for power sector.

Main Functional Features

With 50A max test power output current and 0~25kΩ test range
It auto-calculates resistance change rate in 5S, 15S, 30S during testing to help judge data stability and avoid misreading.
It has multiple protections (380V misconnection for 50A/40A, back EMF, wire disconnection, power failure) and ground wire alarm (50A/40A).
Equipped with a thermal printer, it stores 200 local data pieces and supports USB mass storage.
Its 7-inch industrial true-color screen, full touch control + jog dial enable comfortable, convenient human-machine interaction.

Accuracy	±(reading×0.2%+2)
Power Supply	AC220V±10%, 50/60Hz
Use Temperature	-10℃～50℃
Relative Humidity	＜90%, non-condensing.

Test temp

Set current oil temperature of tested products.

Conv temp

Set the temperature value to be converted from the resistance value measured at current oil temperature. This value relates to converted resistance value.

Material

Copper and aluminum can be selected. Winding material is related to the conversion coefficient used in calculating the converted resistance value.

Current

Select test current to use in tests.

Click “Test” button to start tests after all parameters are set.
