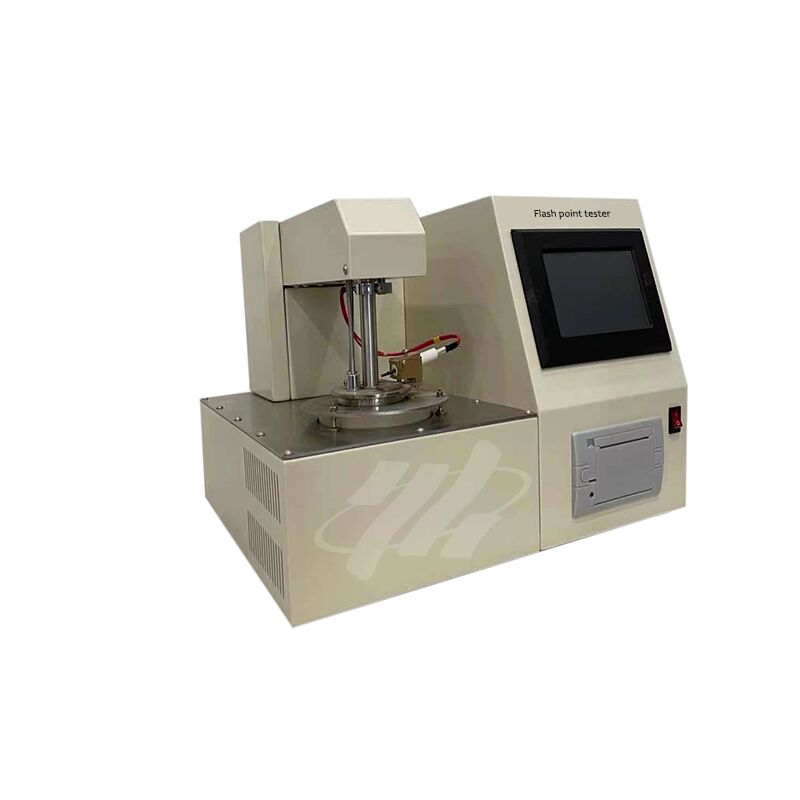

Automatic Flash Point Tester for Transformer

Meet the XHSD183 Fully Automatic Closed-Cup Flash Point Tester—your go-to solution for accurate petroleum product flash point measurement! Built with advanced international technology, it boasts a vivid full-color LCD touch screen and an intuitive Chinese interface, with menu-prompted input for parameters such as preset temperature, oil grade, atmospheric pressure and test date to streamline your workflow. Featuring open fuzzy control software and a modular design, it strictly adheres to GB/T261-2008 and GB/T261-83 standards. A cost-effective replacement for expensive imported equipment, this tester is a must-have for railway, aviation, electric power, petroleum sectors and R&D labs alike.

Technical Specifications
☆ 1. Temperature Measurement: 50～200℃

Repeatability: ≤2℃

Reproducibility: ≤±4℃

Resolution: 0.1℃

Accuracy: 0.5％

☆ 2. Ambient Temperature: 10-40℃

Relative Humidity: ≤85％

Power Supply: AC220V  50Hz±5%

Performance Features:
1. Features a Chinese language software error prompt and correction function;

2. Equipped with parameter display functions for test date, test time, etc.;

3. Automatically corrects for the influence of atmospheric pressure on the test and calculates the correction value;

4. Differential detection and automatic system deviation correction;

5. Automatic completion of lid opening, ignition, detection, and data printing;

6. Automatic raising and lowering of the test arm;

7. Ignition method: Electronic ignition.

Application Areas:
♦ Power systems: power generation, transmission, transformation, and distribution;
♦ Factories and mines: large-scale manufacturing plants and various mining companies;
♦ Metallurgy and petrochemicals: smelting, chemical industry, water treatment, etc.;
♦ Transportation: ports/railways/highways/airports and municipal street lighting, etc.;
♦ Enterprises and institutions: logistics departments of large enterprises and institutions;
♦ Construction industry: large construction and property management companies;
♦ Power equipment installation and testing: power installation and commissioning companies of various levels;
